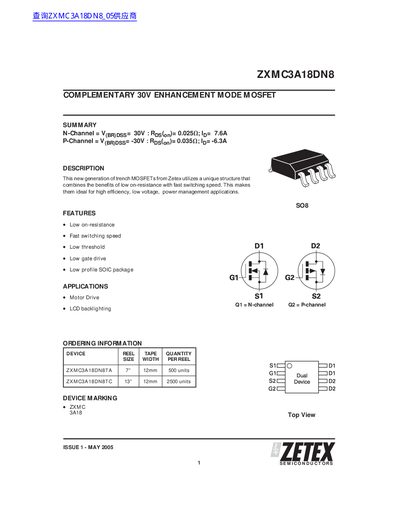

Zetex ZXMC3A18DN8 Complementary MOSFET Datasheet

This datasheet provides detailed information on ZXMC3A18DN8, including product specifications, package dimensions, pinout, applications, etc.

Brand: Zetex
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 179 KB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: ED7F2F3C490946FE768AF05B6E9E0A49
PDF: Zetex ZXMC3A18DN8 Complementary MOSFET Datasheet PDF

About this manual

The document is a technical datasheet for the ZXMC3A18DN8, a complementary pair of N-Channel and P-Channel trench MOSFETs manufactured by Zetex. These devices are designed for high efficiency and low voltage power management applications, such as motor drives and LCD backlighting. The datasheet highlights features including low on-resistance, fast switching speed, and a low profile SOIC package.

What's inside

Summary
Features
Applications
Ordering Information
Absolute Maximum Ratings
Thermal Resistance
Electrical Characteristics
Typical Characteristics
Package Outline
Package Dimensions

Specifications

Drain-Source Voltage	30 V
Static Drain-Source On-State Resistance (N-Channel)	0.025 Ohm
Static Drain-Source On-State Resistance (P-Channel)	0.035 Ohm
Operating Temperature Range	-55 to +150 °C
Package Type	SOIC

Frequently asked questions

What is the maximum junction temperature?

The maximum operating and storage temperature range is -55 to +150 °C.

What is the on-resistance of the N-Channel device?

The static drain-source on-state resistance is 0.025 Ohm.
