This document introduces a new generation of TRENCH MOSFETs from Zetex that combines the benefits of low on-resistance with fast switching speed. They are ideal for high efficiency, low voltage, power management applications.

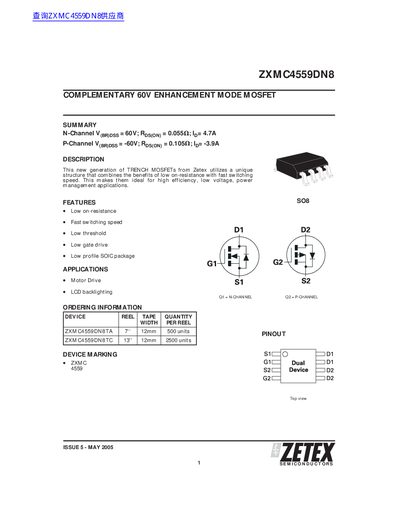

The document describes the Zetex ZXMC4559DN8, a new generation of TRENCH MOSFETs designed for high efficiency, low voltage power management applications. The device combines an N-channel and a P-channel in a single package, featuring low on-resistance and fast switching speeds suitable for motor drives and LCD backlighting.
| Package Type | SOIC |
|---|---|
| Operating Temperature Range | -55 to +150 °C |
The device can dissipate up to 18 W when both active dies are running at equal power.
The device operates and stores within a temperature range of -55 to +150 °C.
