IXYS IXFH/IXFM10N90 IXFH/IXFM12N90 IXFH13N90 handbook

This data sheet lists the maximum ratings, characteristic values, package information, etc. of HiPerFETTM Power MOSFETs N-Channel Enhancement Mode High dv/dt, Low trr, HDMOSTM Family TO-247 AD (IXFH) TO-204 AA (IXFM).

Brand: IXYS
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 84 KB
Published: 15 June, 2012
Updated: 30 September, 2023
MD5 checksum: ED227758C600C425642A5A3666EB7A22
PDF: IXYS IXFH/IXFM10N90 IXFH/IXFM12N90 IXFH13N90 handbook PDF

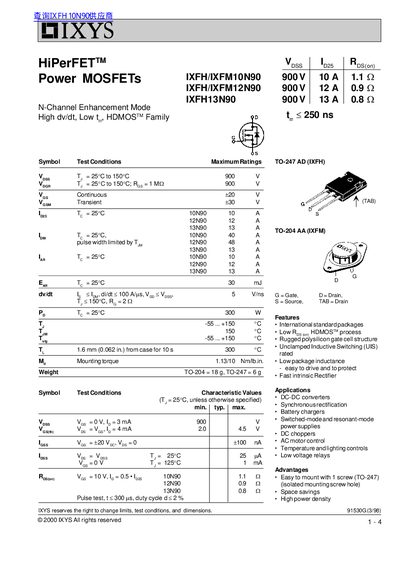

About this manual

This document provides technical specifications and characteristics for the IXFH/IXFM10N90, IXFH/IXFM12N90, and IXFH13N90 N-Channel Enhancement Mode High dv/dt, Low t,, HDMOS™ Family Power MOSFETs. The devices feature a rugged polysilicon gate cell structure and are available in TO-247 (AD) and TO-204 (AA) packages.

What's inside

Maximum Ratings
Characteristic Values
Package Outlines
Source-Drain Diode Characteristics
Output Characteristics
Input Admittance

Specifications

Voltage (Voss)	900 V
Continuous Current (Ios)	10A / 12A / 13A
Operating Temperature Range	-55°C to +150°C

Frequently asked questions

What is the family name for these MOSFETs?

They belong to the HiPerFET™ Family.

What is the maximum continuous drain current for the 10N90 model at 25°C?

The maximum continuous drain current for the 10N90 model is 10 A at 25°C.

What is the maximum mounting torque for the TO-204 package?

The maximum mounting torque for the TO-204 package is 1.13 Nm.
