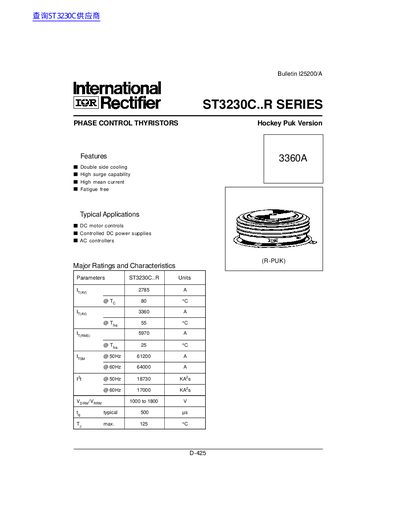

The 3360A phase control thyristors Hockey Puk version ST3230C..R series D-425 have features such as double side cooling, high surge capability, high mean current, and fatigue free operation. Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
This document provides the technical specifications for the International Rectifier ST3230C..R Series phase control thyristors. It covers major ratings such as average on-state current, surge current, and voltage ratings for various voltage codes ranging from 1000V to 1900V. The thyristors are designed for applications including DC motor controls, controlled DC power supplies, and AC controllers, featuring double-side cooling capabilities and high surge capability.
| Max. average on-state current (Case temp 80°C) | 2785 A |
|---|---|
| Max. average on-state current (Heatsink temp 55°C) | 3360 A |
| Max. RMS on-state current (DC @ 25°C) | 5970 A |
| Max. operating temperature | 125 °C |
| Max. storage temperature range | -55 to 125 °C |
| Max. peak gate power | 150 W |
| Max. peak positive gate current | 30 A |
| Approximate weight | 1600 g |
Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
The maximum operating temperature is 125 °C for on-state (conducting) conditions.
