This document is about the specification of SC105, including package type, size, heat resistance, current, etc.

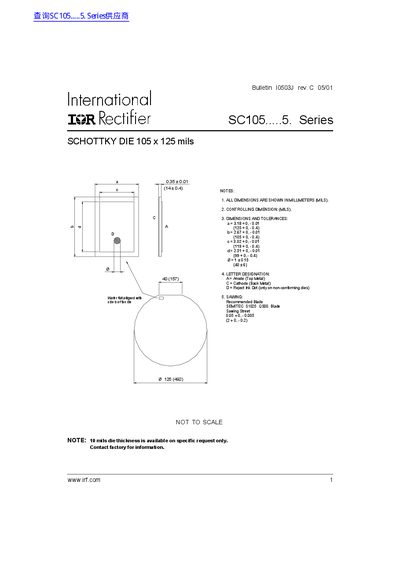

This document is a datasheet for the International Rectifier SC105.....5. Series Schottky dies. It provides dimensional drawings and specifications for the die, including anode and cathode locations and sawing recommendations.
The document lists electrical characteristics for various device types within the series, such as the SC105R015x5x and SC105S020x5x, specifying maximum reverse voltage and forward current. It also details mechanical data regarding metal thickness and bonding capabilities, along with packaging options like tape and reel or wafer in box.
| Die Thickness | 10 mils (specific request) |
|---|---|
| Package Style (SC105S020x5x) | TO-220 |
| Shelf Life (Normal Atmosphere) | six months |
The recommended blade is the SEMITEC $1025 QS00 Blade.
The shelf life is reduced to six months if stored in normal atmosphere.
All dimensions are shown in Mils.
