ST330C is a 650A phase control thyristor with a metal case and ceramic insulator. It is suitable for applications such as DC motor controls, controlled DC power supplies, and AC controllers.

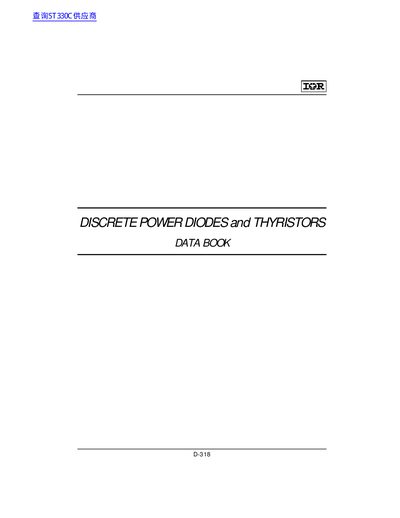

This document is a datasheet for the International Rectifier ST330C..L Series Phase Control Thyristors. The devices feature a metal case with a ceramic insulator and utilize the International standard case style TO-200AC (B-PUK). They are designed for high-profile hockey-puk applications.
| Max. average on-state current | 650 A |
|---|---|
| Max. RMS on-state current | 1230 A |
| Max. operating temperature range | -40 to 125 °C |
| Max. storage temperature range | -40 to 150 °C |
| Case style | TO-200AC (B-PUK) |
Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
The maximum average on-state current is 650 A under 180° conduction with a half sine wave.
The maximum operating temperature range is from -40 to 125 °C.
