FDLL300/A / 333 is a high conductance low leakage diode sourced from Process 1M. Its features are a wide operating temperature range and large working current, with a maximum current of up to 500 mA.

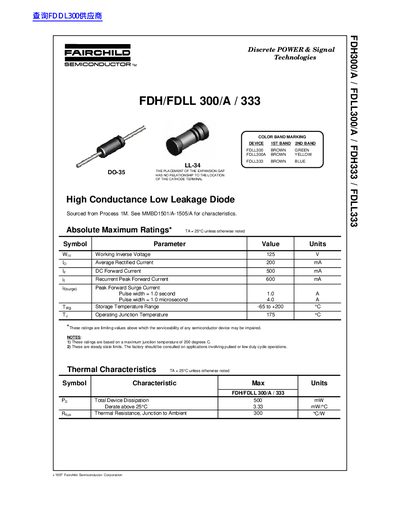

This document provides technical data for the Fairchild Semiconductor FDH/FDLL 300/A / 333 series, which are High Conductance Low Leakage Diodes. The datasheet details color band markings and terminal placement relative to the cathode.
The document lists absolute maximum ratings such as working inverse voltage of 125 V and operating junction temperature up to 175 °C. It also includes thermal characteristics like total device dissipation of 500 mW.
| Working Inverse Voltage | 125 V |
|---|---|
| Average Rectified Current | 200 mA |
| DC Forward Current | 500 mA |
| Operating Junction Temperature | 175 °C |
| Total Device Dissipation | 500 mw |
| Thermal Resistance, Junction to Ambient | 300 °C/W |
The breakdown voltage (By) at Ip = 100 pA is a minimum of 150 V.
The forward voltage (VF) ranges from a minimum of 680 mV to a maximum of 920 mV depending on current.
The device can be stored in a temperature range from -65 to +200 °C.
