IXGH24N50B/24N60B is a high frequency IGBT produced by IXYS, with high current handling capability, high power density, high switching speed and other characteristics, suitable for AC motor speed control, DC servo and robot drive, DC chopper, uninterruptible power supply, switched mode and resonant mode power supply etc.

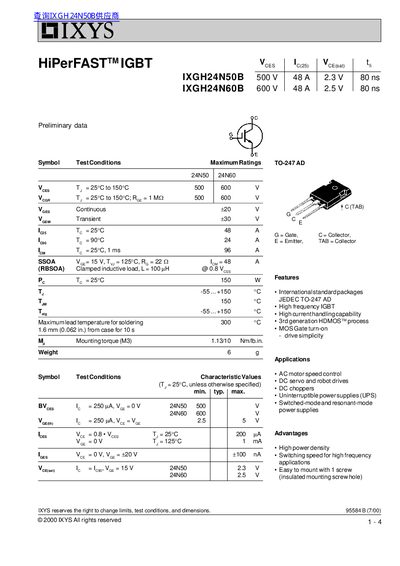

This document provides preliminary data for the IXYS IXGH24N50B and IXGH24N60B High Frequency IGBTs. These devices are designed for high power density applications and feature a 3rd generation HDMOS process with MOS gate turn-on drive simplicity.
| Operating Temperature Range | -55... +150 °C |
|---|---|
| Package Type | TO-247 AD |
They are suitable for AC motor speed control, DC servo and robot drives, DC choppers, and various power supplies.
The maximum lead temperature for soldering is 300 °C for 10 seconds.
The mounting torque is 1.13 N·m (10 lb·in).
