This document describes the 8K-BIT/16K-BIT serial electrically erasable PROM products (IS93C76A, IS93C86A) from Integrated Silicon Solution, Inc. (ISSI). The products feature the industry-standard Microwire interface, non-volatile data storage, low voltage operation, full TTL compatible inputs and outputs, auto increment function, user-configured memory organization, hardware and software write protection, and more.

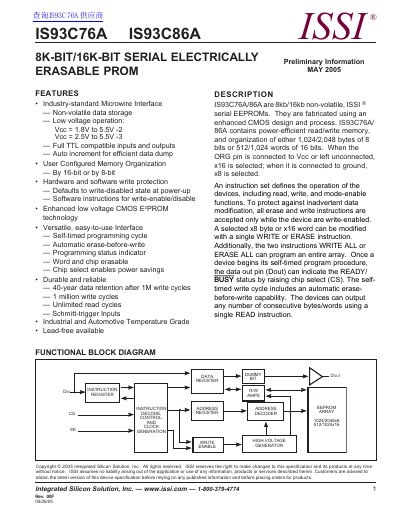

This document is a preliminary datasheet for the ISSI IS93C76A and IS93C86A, which are 8kb and 16kb non-volatile serial EEPROMs. The devices utilize an enhanced CMOS design and feature an industry-standard Microwire interface supporting low-voltage operation from 1.8V to 5.5V.
| Memory Capacity | 8kb/16kb |
|---|---|
| Voltage Range | 1.8V to 5.5V |
| Data Retention | 40 years |
| Write Cycles | 1 million |
| Temperature Range (Industrial) | -40°C to +85°C |
| Temperature Range (Automotive) | -40°C to +125°C |
The devices support low voltage operation with Vcc ranging from 1.8V to 5.5V.
Yes, the devices include both hardware and software write protection features.
They utilize an industry-standard Microwire interface.
