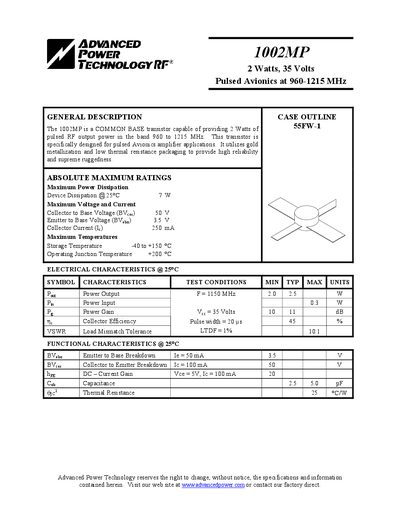

The 1002MP is a high performance common base transistor capable of providing 2 Watts of pulsed RF output power in the band 960 to 1215 MHz. This transistor is specifically designed for pulsed Avionics amplifier applications. It utilizes gold metallization and low thermal resistance packaging to provide high reliability and supreme ruggedness.
The 1002MP is a common base transistor designed specifically for pulsed avionics amplifier applications. It operates in the frequency band from 960 to 1215 MHz and provides up to 2 Watts of pulsed RF output power.
The device utilizes gold metallization and low thermal resistance packaging to ensure high reliability and ruggedness. Key electrical characteristics include a maximum collector current of 250 mA, a typical power gain of 11 dB at 1150 MHz, and a collector efficiency of 45% with a pulse width of 20 microseconds.
| Frequency Band | 960 to 1215 MHz |
|---|---|
| Pulsed RF Output Power | 2 Watts |
| Maximum Collector to Base Voltage | 50 V |
| Maximum Emitter to Base Voltage | 3.5 V |
| Maximum Collector Current | 250 mA |
| Operating Junction Temperature | +200 °C |
It is specifically designed for pulsed Avionics amplifier applications.
The device utilizes gold metallization and low thermal resistance packaging.
