This datasheet provides detailed information on the characteristics and features of the CHF1.5KE6.8 to CHF1.5KE400CA series, which are flip-chip packaged TVS diodes with a maximum forward voltage drop of 6.8V to 400V, a maximum reverse breakdown voltage of 400V, a maximum non-repetitive peak power of 1500W, a reverse recovery time of 1X10-12, a forward recovery time of 1X10-9, a total continuous power dissipation of 2.5W, and a weight of 0.3 grams.

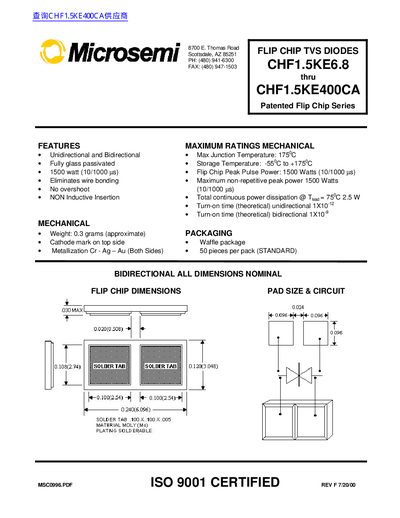

This document provides technical specifications for the Microsemi CHF1.5KE series of flip chip TVS diodes. The series includes both unidirectional and bidirectional models designed for surge protection applications. Key features include a patented flip chip design that eliminates wire bonding, fully glass passivation, and a maximum junction temperature of 175°C.
| Max Junction Temperature | 175°C |
|---|---|
| Storage Temperature | -55°C to +175°C |
| Flip Chip Peak Pulse Power | 1500 Watts |
| Maximum non-repetitive peak power | 1500 Watts |
| Total continuous power dissipation | 2.5 W |
| Weight | 0.3 grams |
| Packaging | Waffle package |
| Pieces per pack | 50 pieces |
The maximum junction temperature is 175°C.
The total continuous power dissipation is 2.5 W at Tiag= 75°C.
A standard pack contains 50 pieces.
