Microsemi 1N3016B thru 1N3051B Zener Diodes Datasheet

Q: What is the operating temperature range for these zener diodes?

The diodes operate from -65°C to +175°C.

Q: What is the maximum power dissipation at a temperature below +125°C?

The maximum power dissipation is 1.0 Watt.

Q: What is the forward voltage at 200 mA?

The forward voltage is 1.5 Volts.

1N3016B-1N3051B 1 Watt metal case Zener diodes are a well established Zener diode series for the 1N3016 to 1N3051 JEDEC registration in the metal case DO-13 package providing a glass hermetic seal for 6.8 to 200 volts.

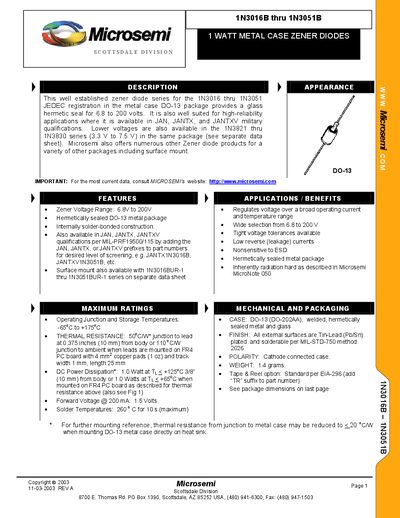

Microsemi 1N3016B thru 1N3051B Zener Diodes Datasheet - cover page

Brand: Microsemi
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 194 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Models: 1N3016B, 1N3051B
MD5 checksum: F368EFF033CB18D4E7F7E6722FA28256
PDF: Microsemi 1N3016B thru 1N3051B Zener Diodes Datasheet PDF

About this manual

This document is a technical datasheet for the Microsemi 1N3016B through 1N3051B series of 1-watt metal case zener diodes. These components are housed in hermetically sealed DO-13 (DO-202AA) packages and feature internally solder-bonded construction, making them suitable for high-reliability applications including military specifications.

What's inside

Description
Maximum Ratings
Electrical Characteristics
Package Dimensions
Thermal Resistance

Specifications

Power Dissipation	1.0 Watt at Tj < +125°C
Operating Temperature Range	-65°C to +175°C
Package Type	DO-13 (DO-202AA)
Voltage Range	6.8V to 200V
