SMCGLCE6.5, SMCGLCE170A, SMCJLCE6.5, SMCJLCE170A are Microsemi’s 1500 watt low capacitance surface mount transient voltage suppressors. They feature low capacitance, low impedance, high peak current, and fast response time. They are suitable for protecting high frequency applications, inductive switching environments or electrical systems involving secondary lightning effects per IEC61000-4-5 as well as RTCA/DO-160D or ARINC 429 for airborne avionics.

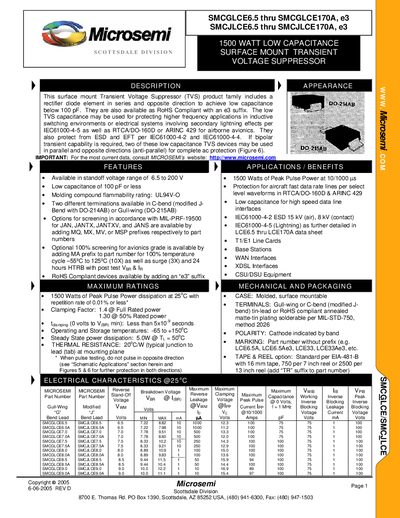

This document describes the SMCGLCE6.5 through SMCGLCE170A series of 1500 Watt low capacitance surface mount Transient Voltage Suppressors (TVS). These devices feature a rectifier diode element in series to achieve low capacitance below 100 pF, making them suitable for protecting higher frequency applications in inductive switching environments and electrical systems involving secondary lightning effects.
| Peak Pulse Power | 1500 Watts |
|---|---|
| Capacitance | 100 pF or less |
| Operating Temperature | -65 to +150 C |
| Thermal Resistance | 20 C/W |
| Steady State Power Dissipation | 5.0W |
The devices have a low capacitance of 100 pF or less.
Yes, RoHS Compliant versions are available by adding an e3 suffix to the part number.
