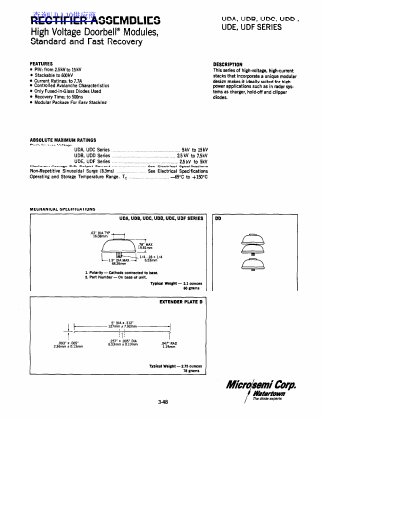

This document describes the UDA, UDB, UDC, UDD, UDE, and UDF series of high-voltage, high-current stackable rectifier assemblies. These modular units incorporate fused-in-glass diodes and are designed for high-power applications such as radar systems, serving as charger, hold-off, and clipper diodes.
| Peak Inverse Voltage (PIV) | 2.5kV to 15kV |
|---|---|
| Stackable Voltage | up to 600kV |
| Current Ratings | to 7.7A |
| Recovery Time | up to 500ns |
| Operating Temperature Range | -65°C to +125°C |
The peak inverse voltage ratings for the UDA and UDC series range from 2.5kV to 15kV.
The maximum average D.C. output current for the UDE-2.5 model is 3.00A.
