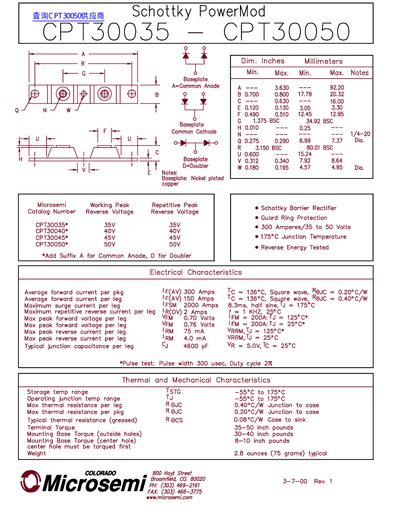

This document is a datasheet for the Microsemi CPT30035 Schottky PowerMod, a high-current rectifier component. It provides dimensional drawings for the baseplate and hood, listing specific measurements in both inches and millimeters for various mounting points.
The datasheet details the electrical characteristics, including a reverse voltage of 35V, an average forward current of 150 Amps per leg, and a maximum surge current of 2000 Amps. It also lists thermal properties such as a junction temperature range of -55°C to 175°C and typical junction capacitance of 4600 pF per leg.
| Reverse Voltage | 35V |
|---|---|
| Average forward current per pkg | 300 Amps |
| Average forward current per leg | 150 Amps |
| Maximum surge current per leg | 2000 Amps |
| Maximum repetitive reverse current per leg | 2 Amps |
| Max peak forward voltage per leg | 0.70 Volts |
| Max peak reverse current per leg | 75 mA |
| Typical junction capacitance per leg | 4600 pF |
| Operating junction temp range | -55°C to 175°C |
| Weight | 2.8 ounces (75 grams) typical |
The reverse voltage is 35V.
The maximum surge current per leg is 2000 Amps.
The typical junction capacitance per leg is 4600 pF.
