The 74HC/HCT00 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT00 provide the 2-input NAND function.

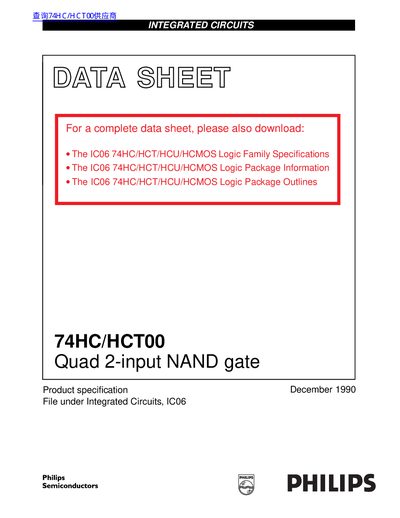

This document is a product specification datasheet for the 74HC/HCT00, which are high-speed Si-gate CMOS devices. The ICs provide a 2-input NAND function and are pin compatible with low power Schottky TTL (LSTTL). They comply with JEDEC standard no. 7A.
| Device Type | Quad 2-input NAND gate |
|---|---|
| Technology | High-speed Si-gate CMOS |
| TTL Compatibility | Pin compatible with LSTTL |
| Standard Compliance | JEDEC standard no. 7A |
| Output Capability | standard |
| IC Category | SSI |
The device provides the 2-input NAND function.
The maximum propagation delay is 17 ns when the supply voltage is 5V.
The input unit load coefficient for inputs nA and nB is 1.50.
