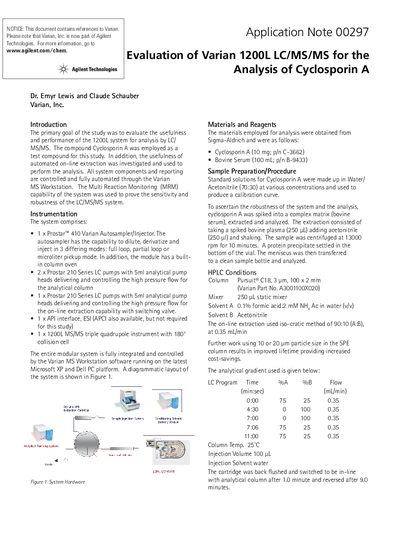

The document evaluates the usefulness and performance of the Varian 1200L LC/MS/MS for the analysis of Cyclosporin A. The system includes automated on-line extraction and is controlled and fully automated through the Varian MS Workstation software. The Multi Reaction Monitoring (MRM) capability is used to demonstrate the sensitivity and robustness of the LC/MS/MS system.
This document evaluates the usefulness and performance of the Agilent 1200L LC/MS/MS system for analyzing Cyclosporin A. The study investigates the system's Multi Reaction Monitoring (MRM) capability, sensitivity, and robustness using automated on-line extraction and reporting via the Varian MS Workstation.
The analysis utilizes a Prostar 410 Autosampler and Prostar 210 Series LC pumps integrated with an API interface and a 1200L MS/MS triple quadrupole instrument. The study demonstrates the system's ability to produce a calibration curve with excellent linearity (r² = 0.999) and determine the Limit of Detection (LOD) and Limit of Quantitation (LOQ) for Cyclosporin A in bovine serum.
| Column | Pursuit C18, 3 um, 100 x 2 mm |
|---|---|
| Column Temperature | 25°C |
| Injection Volume | 100 uL |
| Ionization Mode | ESI negative |
| Collision Gas | 2.0 mTorr Argon |
| API Drying Gas | 39 psi at 200°C |
| API Nebulizing Gas | 59 psi |
| SIM Width | 0.7 amu |
| Precursor Ion (Cyclosporin A) | 1200 m/z |
| Product Ion (Cyclosporin A) | 1089 m/z |
| Collision Energy (Cyclosporin A) | 38 V |
| Calibration Linearity | r² = 0.999 |
The compound Cyclosporin A was employed as a test compound for this study.
The analysis uses ESI negative ionization mode.
Excellent linearity was found with an r² = 0.999.
The collision energy used for Cyclosporin A is 38 V.
