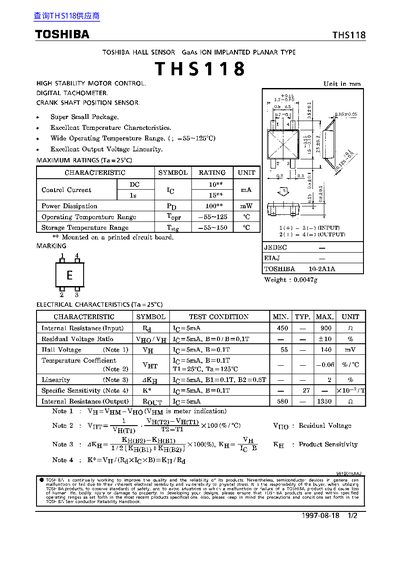

This document is a datasheet for the Toshiba THS118, a GaAs ion implanted planar type hall sensor designed for high stability motor control applications. Key features include a digital tachometer and crank shaft position sensor capabilities, housed in a super small package with excellent temperature characteristics.
| Control Current | 1 mA |
|---|---|
| Power Dissipation | 100 mW |
| Operating Temperature Range | -55~125 °C |
| Storage Temperature Range | -55~150 °C |
| Internal Resistance (Input) | 450 to 900 ohms |
| Residual Voltage Ratio | +10 % |
| Hall Voltage | 55 to 140 mV |
| Linearity | 2 % |
| Specific Sensitivity | 27 x10-?/T |
| Internal Resistance (Output) | 580 to 1850 ohms |
The maximum power dissipation is 100 mW.
The typical Hall voltage output is 140 mV.
