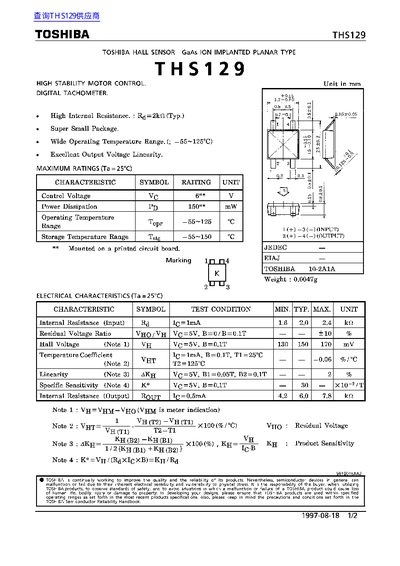

This document is a technical datasheet for the Toshiba THS129, a GaAs ion implanted planar type Hall sensor designed for high stability motor control and digital tachometer applications. The device features a super small package and operates within a wide temperature range of -55°C to 125°C.
| Operating Temperature Range | -55~125 °C |
|---|---|
| Storage Temperature Range | -55~150 °C |
| Control Voltage (Vc) | 6* Vv a a) £ |
| Power Dissipation (Pp) | 150** mW |
The maximum power dissipation is 150 mW when mounted on a printed circuit board.
The typical internal resistance for the input is 2.0 kΩ.
