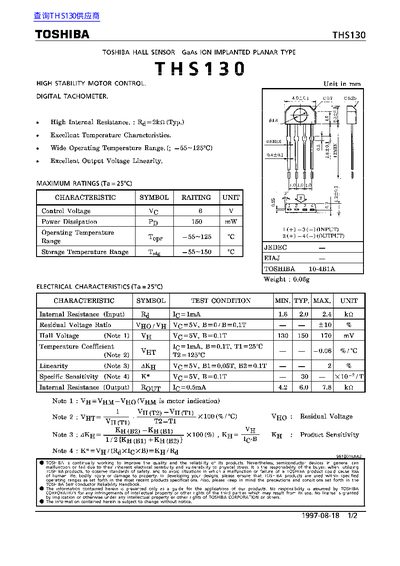

This document is a datasheet for the TOSHIBA THS130, a GaAs ion implanted planar type Hall sensor designed for high stability motor control applications. The device features a digital tachometer function and is characterized by high internal resistance and excellent temperature characteristics.
| Control Voltage | 6 V |
|---|---|
| Power Dissipation | 150 mW |
| Operating Temperature Range | -55~125 °C |
| Storage Temperature Range | -55~150 °C |
| Internal Resistance (Input) | 1.6 ~ 2.4 kΩ |
| Residual Voltage Ratio | 10 % |
| Hall Voltage | 130 ~ 170 mV |
| Linearity | 2 % |
| Specific Sensitivity | 30 x10-2/T |
The device operates between -55 and 125 degrees Celsius.
The maximum power dissipation is 150 milliwatts.
