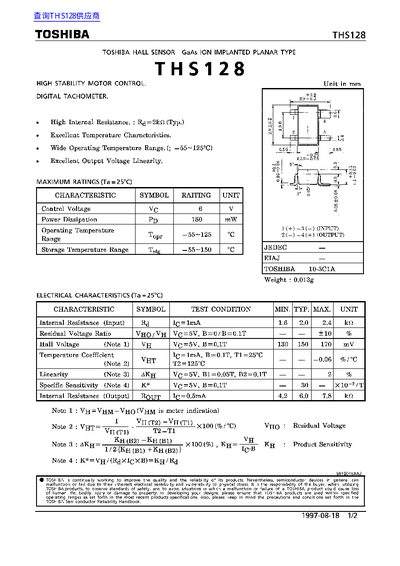

This document is a datasheet for the Toshiba THS128, a high stability motor control Hall sensor. It features a digital tachometer and utilizes a GaAs ion implanted planar type design. The device is designed for high internal resistance and excellent temperature characteristics, operating within a wide temperature range of -55 to 125°C.
| Control Voltage | 6 V |
|---|---|
| Power Dissipation | 150 mW |
| Operating Temperature Range | -55~125 °C |
| Storage Temperature Range | -55~150 °C |
| Hall Voltage | 150 mV (Typ.) |
| Linearity | 2 % |
| Internal Resistance (Output) | 6.0 kΩ (Typ.) |
The device supports a maximum control voltage of 6 V and has a maximum power dissipation rating of 150 mW.
The sensor operates within an ambient temperature range from -55°C to +125°C.
