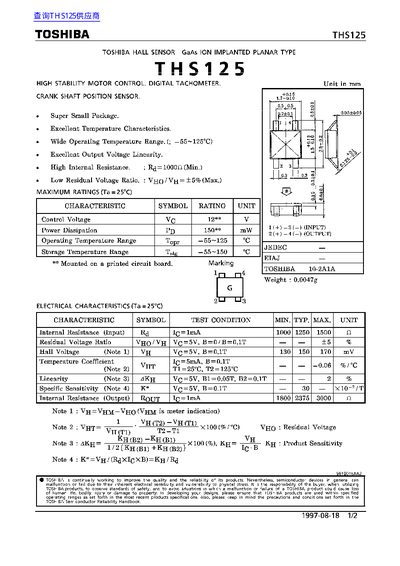

This document is a technical datasheet for the Toshiba THS125, a planar type GaAs ion implanted hall sensor designed for high stability motor control applications. Key features include a built-in digital tachometer function, crank shaft position sensing, and excellent temperature characteristics with an operating range of -55 to 125°C.
| Control Voltage (Vo) | 12 V |
|---|---|
| Power Dissipation (Pp) | 150 mW |
| Operating Temperature Range (Topr) | -55~125 °C |
| Storage Temperature Range (Tstg) | -55~150 Cc |
| Internal Resistance (Input) Min. | 1000 Ω |
| Residual Voltage Ratio Max. | 5 % |
The device operates within a temperature range of -55 to 125 °C.
The maximum control voltage rating is 12 V.
The minimum internal resistance for the input is 1000 Ω.
