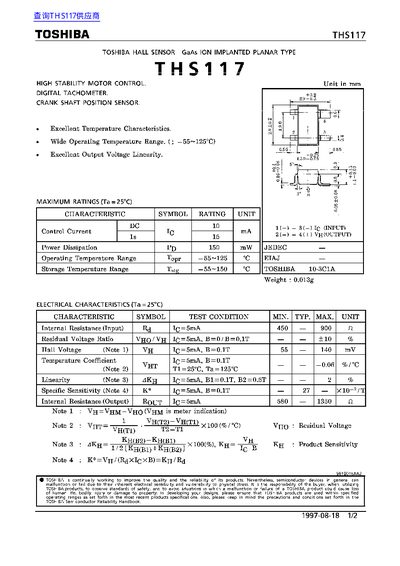

This document is a datasheet for the TOSHIBA THS117, a GaAs ion implanted planar type Hall sensor designed for high stability motor control. The device features a digital tachometer and crank shaft position sensor capabilities, operating within a wide temperature range of -55 to 125°C.
| Operating Temperature Range | -55~125 °C |
|---|---|
| Storage Temperature Range | -55~150 °C |
| Power Dissipation | 150 mW |
| Control Current Is | 15 mA |
| Internal Resistance (Input) | 450 — 900 Ω |
| Hall Voltage | 55 — 140 mV |
| Linearity | 2 % |
The operating temperature range is from -55 to 125 °C.
The maximum power dissipation is 150 mW.
The internal resistance ranges from 450 to 900 Ω.
