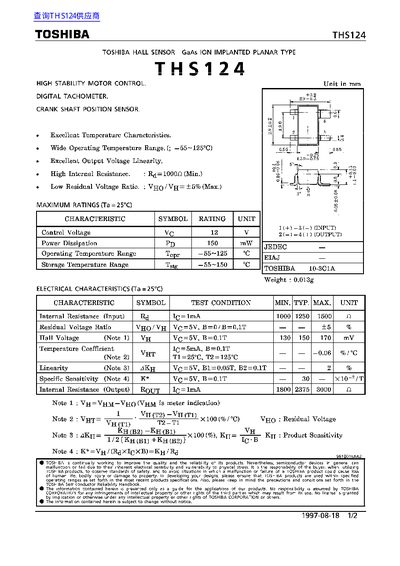

The Toshiba THS124 is a high stability motor control hall sensor of the GaAs ion implanted planar type. It features a built-in digital tachometer and a crank shaft position sensor, designed for applications requiring excellent temperature characteristics and output voltage linearity.
| Control Voltage | 12 V |
|---|---|
| Power Dissipation | 150 mW |
| Storage Temperature Range | -55~150 C |
| Internal Resistance (Input) | 1000-1500 Ohm |
| Residual Voltage Ratio | +5 % |
| Hall Voltage | 130-170 mV |
| Linearity | 2 % |
| Specific Sensitivity | 380 x10-2/T |
The maximum power dissipation is 150 milliwatts.
The minimum internal resistance for the input is 1000 ohms.
