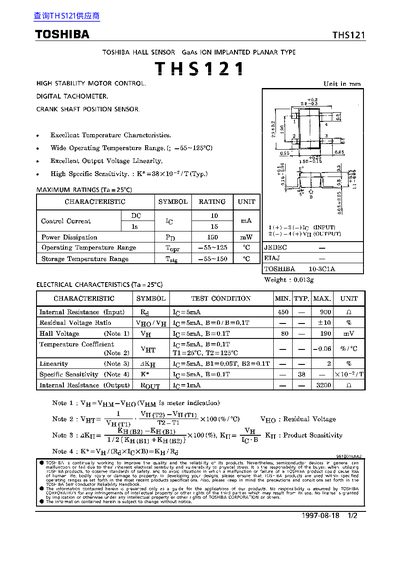

This document is a datasheet for the Toshiba THS121, a GaAs ion implanted planar type hall sensor designed for high stability motor control applications. The device features a digital tachometer and crank shaft position sensor capabilities.
| Operating Temperature Range | -55~125 °C |
|---|---|
| Storage Temperature Range | -55~150 °C |
| Power Dissipation | 150 mW |
| Internal Resistance (Input) | 450 - 900 ohm |
| Hall Voltage | 80 - 190 mV |
The device operates within a temperature range of -55 to 125 °C.
The maximum power dissipation is rated at 150 mW.
