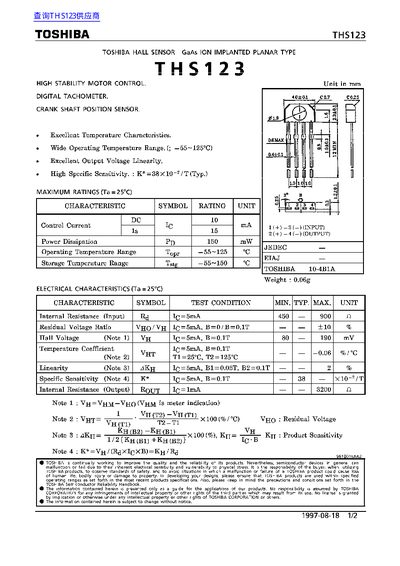

This document is a datasheet for the Toshiba THS123, a GaAs ion implanted planar type hall sensor designed for high stability motor control applications. The device functions as a digital tachometer and crank shaft position sensor, featuring excellent temperature characteristics and output voltage linearity.
| Control Current (Input) | 15 mA |
|---|---|
| Power Dissipation | 150 mW |
| Operating Temperature Range | -55~125 C |
| Storage Temperature Range | -55~150 C |
| Internal Resistance (Input) | 450 ~ 900 ohm |
| Residual Voltage Ratio | +10 % |
| Hall Voltage | 80 ~ 190 mV |
| Linearity | 2 % |
| Specific Sensitivity | 38 x10-2/T |
The operating temperature range is -55 to 125 degrees Celsius.
The maximum power dissipation is 150 mW.
The typical specific sensitivity is 38 x 10^-2 / T.
