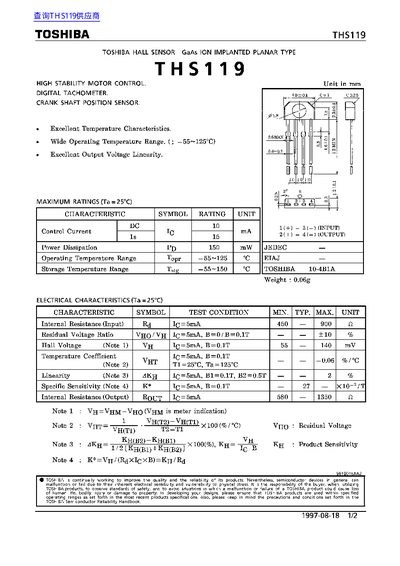

This document is a datasheet for the Toshiba THS119, a GaAs ion implanted planar type hall sensor designed for high stability motor control. The device features a digital tachometer and crank shaft position sensor capabilities.
| Control Current Is | 15 mA |
|---|---|
| Power Dissipation Pp | 150 mW |
| Operating Temperature Range Topr | -55~125 °C |
| Storage Temperature Range Tste | -55~150 °C |
| Internal Resistance (Input) Rq | 450 — 900 ohms |
| Residual Voltage Ratio Vuo/ Vy | +10 % |
| Hall Voltage Vu | 55 — 140 mV |
| Temperature Coefficient | 6 |
| Linearity | 2 % |
| Specific Sensitivity K* | 27 — |xX10-2/T| |
| Internal Resistance (Output) Rout | 580 | — | 13850 ig) |
The device operates between -55°C and 125°C, while it can be stored between -55°C and 150°C.
The maximum power dissipation is rated at 150 mW when the ambient temperature is 25°C.
The typical Hall voltage output is 87 mV under those specific test conditions.
