BZV55 series Zener diodes are Silicon Planar Power Zener Diodes for use as low voltage stabilizer or voltage reference. The Zener voltages are graded according to the international E 24 standard. Higher Zener voltages and 1% tolerance available on request.
The BZV55 series are Mini‑MELF (SOD‑80) silicon planar power Zener diodes offered in several tolerance grades (+2%, +3%, +5%). They are intended for low‑voltage stabilization and reference applications, with Zener voltages ranging from about 2 V up to 46 V.

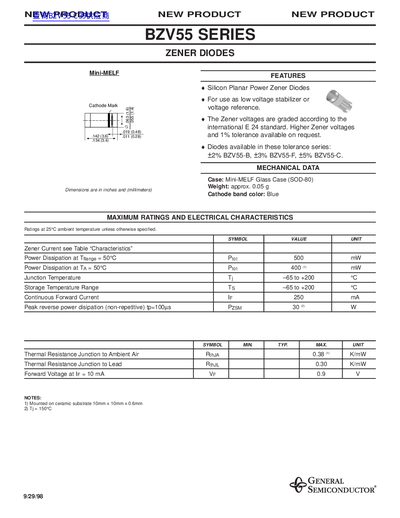

The datasheet provides detailed electrical ratings, mechanical data, and characteristic curves, including power dissipation limits, thermal resistance, and temperature dependence of the Zener voltage. All values are given for standard test conditions unless otherwise noted.
