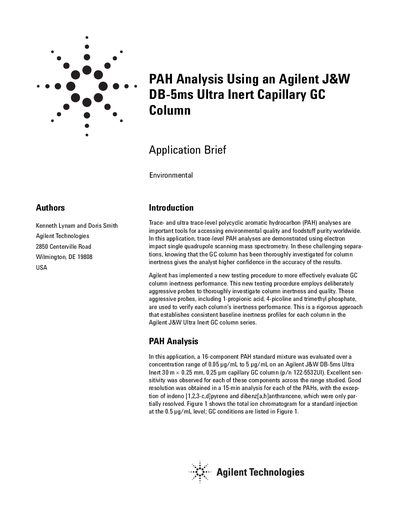

This document describes the results of trace-level PAH analyses using Agilent J&W DB-5ms Ultra Inert 30 m × 0.25 mm, 0.25 µm capillary GC column on a 16-component PAH standard mixture.
This document describes a method for analyzing trace- and ultra trace-level polycyclic aromatic hydrocarbons (PAHs). The application utilizes electron impact single quadrupole scanning mass spectrometry with an Agilent J&W DB-5ms Ultra Inert capillary GC column to achieve excellent sensitivity and resolution.
| Column Length | 30 m |
|---|---|
| Column Inner Diameter | 0.25 mm |
| Film Thickness | 0.25 µm |
| Part Number | 122-5532UI |
Good resolution was obtained in a 15-min analysis for each of the PAHs.
The application demonstrates trace-level analyses over a concentration range of 0.05 pg/mL to 5 pg/mL.
Good resolution was obtained in a 15-min analysis for each of the PAHs.
Excellent linearity was achieved down to a 0.05 ng column loading of each component.
