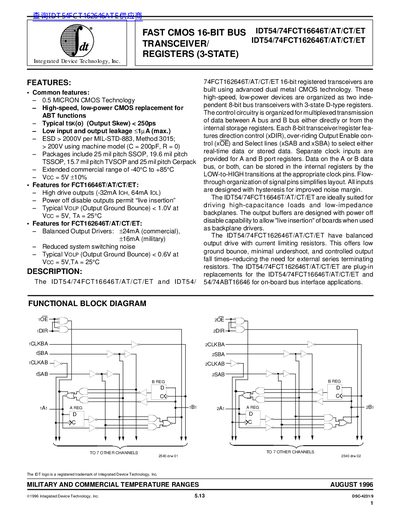

16-bit fast CMOS registered transceivers/registers (3-state)
The IDT54/74FCT16646T/AT/CT/ET and IDT54/74FCT162646T/AT/CT/ET are 16-bit registered transceivers built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two independent 8-bit bus transceivers with 3-state D-type registers, designed for driving high-capacitance loads and low-impedance backplanes.
| Technology | 0.5 MICRON CMOS Technology |
|---|---|
| Output Skew | < 250ps |
| Input Leakage | < 11A (max.) |
| ESD Rating | > 2000V per MIL-STD-883 |
| Operating Temperature (Commercial) | -40°C to +85°C |
| Operating Temperature (Military) | -55°C to +125°C |
| Supply Voltage | 5V +10% |
| Output Drive Current (FCT16646T) | -32mA IOH, 64mA IOL |
| Output Drive Current (FCT162646T) | +24mA (commercial), +16mA (military) |
They are built using advanced dual metal CMOS technology.
Yes, they are ideally suited for driving high-capacitance loads and low-impedance backplanes.
The typical output skew is less than 250ps.
