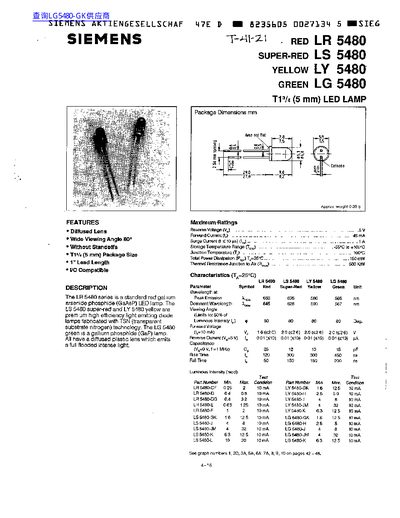

The document describes the Siemens LR 5480 series, a standard red gallium arsenide phosphide (GaAsP) LED lamp. It also covers the LS 5480 super-red, LY 5480 yellow, and LG 5480 green variants, which are fabricated with TSN (transparent substrate nitrogen) technology or gallium phosphide (GaP). All models feature a diffused plastic lens with a wide viewing angle of 80 degrees and a T13 (5 mm) package size.
| Package Size | T13 (5 mm) |
|---|---|
| Lead Length | 1 inch |
| Viewing Angle | 80° |
| Forward Voltage (Red) | 1.6(s20) V |
| Rise Time (Red) | 120 ns |
The lamps have a T13 (5 mm) package size.
All models in the series have a wide viewing angle of 80 degrees.
Yes, the lamps are V/C compatible.
