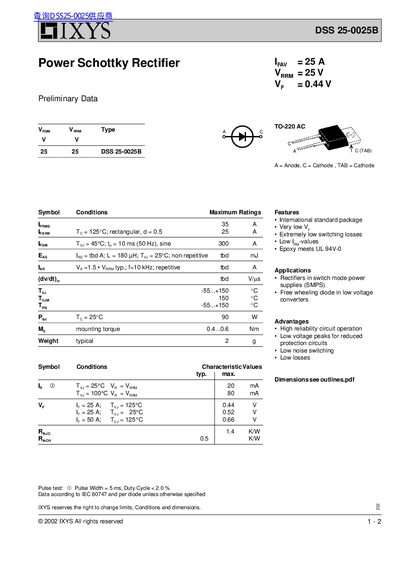

IXYS DSS 25-0025B Power Schottky Rectifier Preliminary Data

DSS 25-0025B is a Schottky rectifier produced by IXYS. It has an international standard package, very low VF, extremely low switching losses, low IRM values, epoxy meets UL 94V-0. Applications include rectifiers in switch mode power supplies (SMPS) and free wheeling diodes in low voltage converters.

Brand: IXYS
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 143 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: 1A002DEACB119FF8DC9E573312DB8937
PDF: IXYS DSS 25-0025B Power Schottky Rectifier Preliminary Data PDF

About this manual

This document provides preliminary data for the IXYS DSS 25-0025B Power Schottky Rectifier. Key specifications include a maximum forward current (I_F) of 25A and a maximum reverse voltage (V_RRM) of 25V. The device operates within a junction temperature range of -55°C to +150°C.

What's inside

Maximum Ratings
Electrical Characteristics
Features
Applications
Advantages
Thermal Characteristics
Package Information

Specifications

Package Type	TO-220 AC

Frequently asked questions

What are the typical applications for this rectifier?

It is used as a rectifier in switch mode power supplies and as a free wheeling diode in low voltage converters.

What is the maximum reverse voltage rating?

The maximum reverse voltage is 25 V.
