the ixys IXGH20N30 is a high power density and high switching speed igbt, suitable for ac motor speed control, dc servo and robot drives, dc choppers, ups, switched-mode and resonant-mode power supplies.

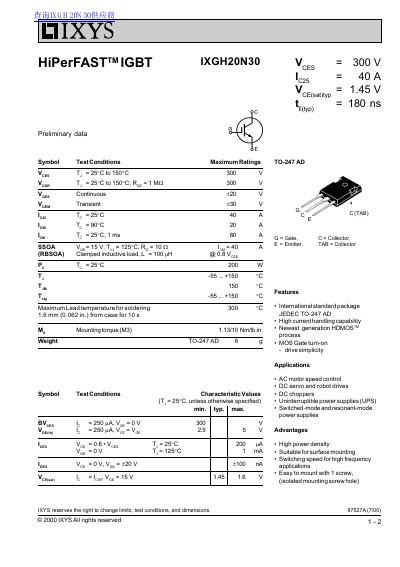

The document describes the IXYS IXGH20N30 IGBT module, which utilizes the HDMOS process to offer high current handling capability and switching speed suitable for high-frequency applications. It is designed with an international standard JEDEC TO-247 AD package that supports surface mounting and easy installation via a single screw. This manual is written in Chinese.
| Package Type | JEDEC TO-247 AD |
|---|---|
| Continuous Collector Current (IC25) | 40 A |
| Peak Pulse Current (ICM) | 80 A |
| Operating Junction Temperature Range | -55 to +150 °C |
| Thermal Resistance (Case-to-Junction) | 0.83 K/W |
| Turn-on Delay Time | 15 ns |
The IXGH20N30 is suitable for AC motor speed control, DC servo and robot drives, DC choppers, UPS systems, and switched-mode power supplies.
The recommended mounting torque for the M3 screw is 1.13 Nm.
