This document describes the features and characteristics of IDT's DSC 5900 product, including a 32-bit microprocessor, enhanced MIPS-II ISA, DSP instructions, MMU, cache management, interrupt controller, I2C interface, UARTs, counter/timers, general-purpose I/O pins, SDRAM controller, and peripheral device controller.

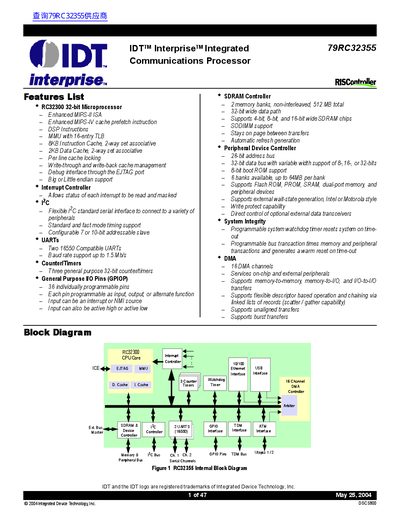

The IDT 79RC32355 is a System on a Chip (SoC) designed for embedded communications and digital consumer applications. It integrates a high-performance RC32300 32-bit microprocessor core with enhanced MIPS-II ISA, DSP instructions, and an MMU. The device incorporates a flexible memory and I/O controller supporting SDRAM, Flash ROM, and SRAM, along with a DMA controller to offload data transfer tasks.
Key interfaces include a full-speed USB slave device controller, a 10/100 Mbps Ethernet MAC with MII interface, and an ATM SAR (Service Assembly and Reassembly) unit supporting UTOPIA Level 1 or 2 interfaces. The chip also features a Serial Time Division Multiplexed (TDM) bus for voice and data, making it suitable for xDSL modems, cable modems, and SOHO routers.
| Microprocessor Core | RC32300 32-bit |
|---|---|
| ISA Architecture | Enhanced MIPS-II |
| Instruction Cache | 8KB, 2-way set associative |
| Data Cache | 2KB, 2-way set associative |
| SDRAM Support | 512 MB total |
| UART Speed | 1.5 Mb/s |
| DMA Channels | 16 |
| Peak Power Consumption | Less than 2.5 W |
| Operating Temperature (Commercial) | 0° to +70° C |
| Operating Temperature (Industrial) | -40° to +85° C |
| Package | 208 pin PQFP |
| Core Supply Voltage | 2.4V |
The UARTs support a baud rate up to 1.5 Mb/s.
The device supports a total of 512 MB of SDRAM across two non-interleaved memory banks.
Yes, the integrated USB slave device controller supports USB remote wakeup.
Commercial devices operate from 0° to +70° C, while industrial devices operate from -40° to +85° C.
