IDT IDT54/74FCT16245T/AT/CT/ET Fast CMOS 16-Bit Bidirectional Transceiver Datasheet

Q: What packages are available for the Industrial version?

The Industrial version is available in SSOP, TSSOP, and TVSOP packages.

Q: What is the maximum terminal voltage for this transceiver?

The absolute maximum rating for terminal voltage with respect to ground ranges from -0.5V up to Vcc + 0.5V.

IDT54/74FCT16245T/AT/CT/ET Fast CMOS 16-bit bidirectional transceiver Military and Industrial temperature ranges

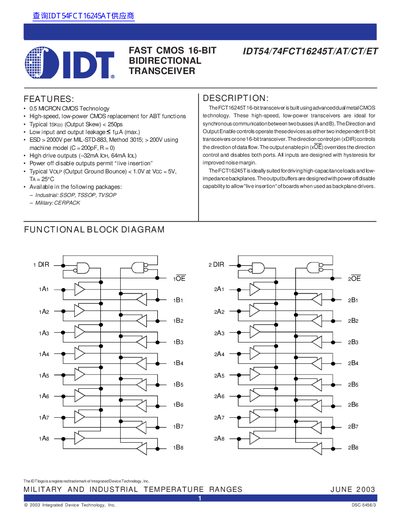

IDT IDT54/74FCT16245T/AT/CT/ET Fast CMOS 16-Bit Bidirectional Transceiver Datasheet - cover page

Brand: IDT
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 84 KB
Published: 11 June, 2012
Updated: 01 October, 2023
Model: IDT54
MD5 checksum: FB9238AECF6E2C3723B05611A9B36AC8
PDF: IDT IDT54/74FCT16245T/AT/CT/ET Fast CMOS 16-Bit Bidirectional Transceiver Datasheet PDF

About this manual

The IDT IDT54/74FCT16245T/AT/CT/ET is a Fast CMOS 16-bit bidirectional transceiver built using advanced dual metal CMOS technology. It serves as a high-speed, low-power replacement for ABT functions, ideal for synchronous communication between two busses. The device features low input and output leakage, high drive outputs, and power-off disable capabilities to permit live insertion of boards.

What's inside

Features
Functional Block Diagram
Pin Configuration
Absolute Maximum Ratings
DC Electrical Characteristics
Output Drive Characteristics
Switching Characteristics
Test Circuits and Waveforms
Ordering Information

Specifications

Technology	0.5 MICRON CMOS Technology
Typical Output Skew	< 250ps
Max Input Leakage	< 1A
Output Drive Current (Industrial)	-32mA IOH, 64mA IoL
Output Ground Bounce	< 1.0V
Output Capacitance	35 pF
Industrial Temperature Range	40°C to +85°C
Military Temperature Range	-55°C to +125°C
