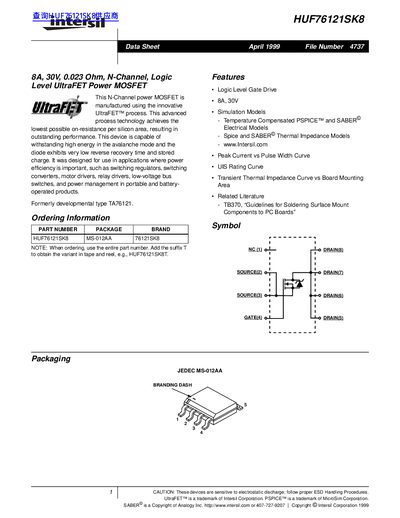

HUF76121SK8 is an N-channel power MOSFET manufactured by Intersil using the innovative UltraFET™ process. This advanced process technology achieves the lowest possible on-resistance per silicon area, resulting in outstanding performance. This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge. It was designed for use in applications where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, low-voltage bus switches, and power management in portable and battery- operated products. Formerly developmental type TA76121.
The Intersil HUF76121SK8 is an N-channel power MOSFET manufactured using the innovative UltraFET process. This device is designed for applications where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, and low-voltage bus switches. It features a logic-level gate drive and is capable of withstanding high energy in the avalanche mode.
| Drain Current (Continuous) | 8A |
|---|---|
| Drain to Source Voltage | 30V |
| On-Resistance | 0.023 Ohm |
| Package Type | MS-012AA |
The part number is HUF76121SK8.
Yes, add the suffix T to the part number to obtain the variant in tape and reel.
