HUF76105DK8 is a low on-resistance (RDS(ON) = 0.050 Ω) N-channel power MOSFET from Intersil Corporation. It has a working voltage of 30V and a maximum current of 5A. This device is suitable for applications that require high power efficiency, such as switching regulators, switching converters, motor drivers, relay drivers, low-voltage bus switches and power management in portable and battery operated products.

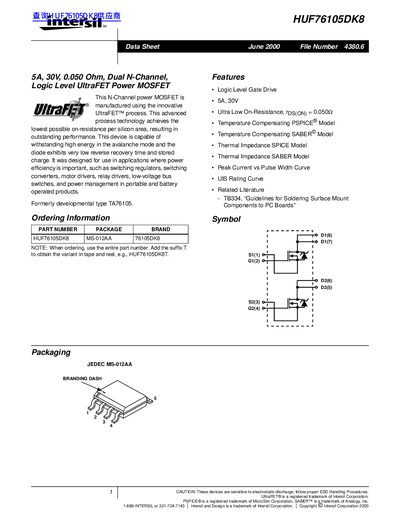

The document describes the Intersil HUF76105DK8, formerly developmental type TA76105. This device is manufactured using the innovative UltraFET process to achieve low on-resistance and high energy withstand capability in avalanche mode.
It is designed for applications requiring power efficiency, such as switching regulators, converters, motor drivers, relay drivers, and low-voltage bus switches. The datasheet provides absolute maximum ratings, electrical specifications, thermal data, and typical performance curves.
| Drain Current (Continuous) | 5A |
|---|---|
| On-Resistance (Typical) | 0.050 Ohm |
| Package Type | MS-012AA |
The former developmental type is TA76105.
Yes, it features logic level gate drive capability.
