This document is the technical manual of HUF76131SK8 10A, 30V, 0.013 Ohm, N-Channel, Logic Level UltraFET Power MOSFET, introducing the features and characteristics of this product.

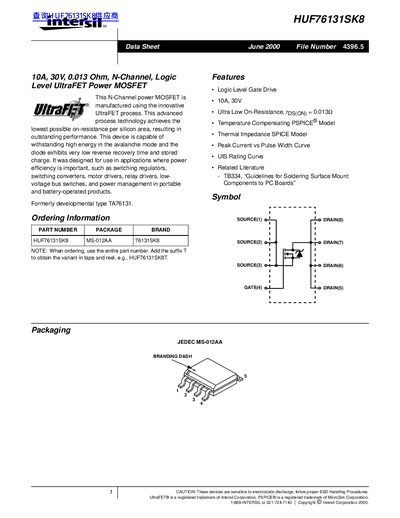

This document is a datasheet for the Intersil HUF76131SK8, an N-Channel power MOSFET manufactured using the innovative UltraFET process. The device is designed for applications where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, low-voltage bus switches, and power management in portable and battery-operated products. It features logic-level gate drive and very low reverse recovery time.
| Drain Current (Continuous) | 10A |
|---|---|
| Drain to Source Voltage | 30V |
| On-Resistance (Typical) | 0.013 Ohm |
| Operating Temperature | -55 to 150°C |
| Package Type | MS-012AA |
The maximum continuous drain current is 10A.
The typical on-resistance is 0.013 Ohm.
