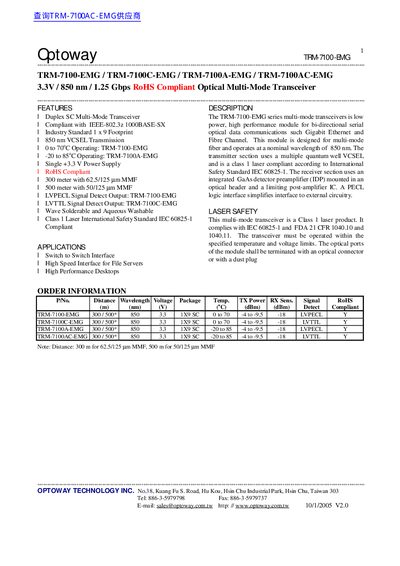

TRM-7100-EMG / TRM-7100C-EMG / TRM-7100A-EMG / TRM-7100AC-EMG 3.3V / 850 nm / 1.25 Gbps RoHS Compliant Optical Multi-Mode Transceiver is a multi-mode optical transceiver that complies with the IEEE-802.3z 1000BASE-SX standard and has an industry standard 1 x 9 pin footprint. It supports 850 nm VCSEL transmission, single +3.3 V power supply, RoHS compliance, support for 300 meters 62.5/125 µm MMF and 500 meters 50/125 µm MMF. It is used in switch-to-switch interfaces, high-performance interfaces for file servers, etc.
The Optoway TRM-7100-EMG series consists of low power, high performance multi-mode transceivers compliant with IEEE-802.3z 1000BASE-SX and Fibre Channel standards. These modules are designed for bi-directional serial optical data communications and operate at a nominal wavelength of 850 nm using a VCSEL transmitter and an integrated GaAs detector preamplifier.
| Data Rate | 1.25 Gbps |
|---|---|
| Operating Wavelength | 850 nm |
| Operating Temperature (Standard) | 0 to 70°C |
| Operating Temperature (Extended) | -20 to 85°C |
| Supply Voltage | 3.3V |
| Laser Safety Class | Class 1 |
| Transmit Power (62.5/125 um) | -9.5 to 4 dBm |
| Receiver Sensitivity | -18 dBm |
The module operates at a data rate of 1.25 Gbps.
The module operates at a nominal wavelength of 850 nm.
