Optoway TRSL-3380W-CXX0G is a 3.3V / CWDM / 155 Mbps single-mode transceiver with duplex LC interface and 18-wavelength DFB LD transmitter. It is compliant with SONET OC-3 LR-2 / SDH STM-1 (L-1.2) standards and suitable for applications such as ATM 155 Mbps links.

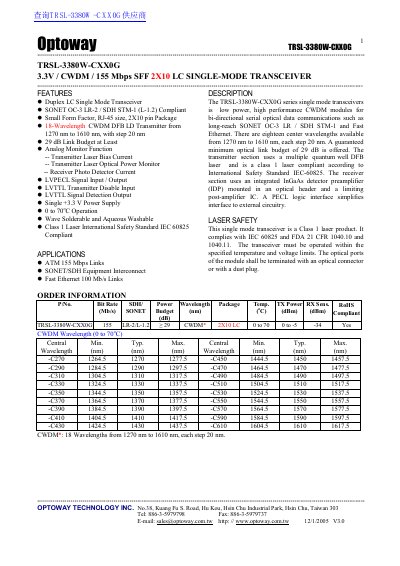

The document describes the Optoway TRSL-3380W-CXX0G series as low-power, high-performance CWDM modules designed for bi-directional serial optical data communications. Key features include compliance with SONET OC-3 LR-2 and SDH STM-1 standards, a guaranteed minimum optical link budget of 29 dB, and operation over 18 CWDM wavelengths ranging from 1270 nm to 1610 nm. The module utilizes a multiple quantum well DFB laser and an integrated InGaAs detector preamplifier.
| Bit Rate | 155 Mbps |
|---|---|
| Wavelength Range | 1270 nm to 1610 nm |
| Operating Temperature | 0 to 70°C |
| Power Supply Voltage | 3.3 V |
| Minimum Optical Link Budget | 29 dB |
| Package Type | SFF |
| Laser Safety Class | Class 1 |
| Data Rate (Typical) | 155 Mb/s |
| Sensitivity | -34 dBm |
The module operates within a temperature range of 0 to 70°C.
A guaranteed minimum optical link budget of 29 dB is offered.
Yes, it includes analog monitor functions for transmitter laser bias current, transmitter laser optical power, and receiver photo detector current.
