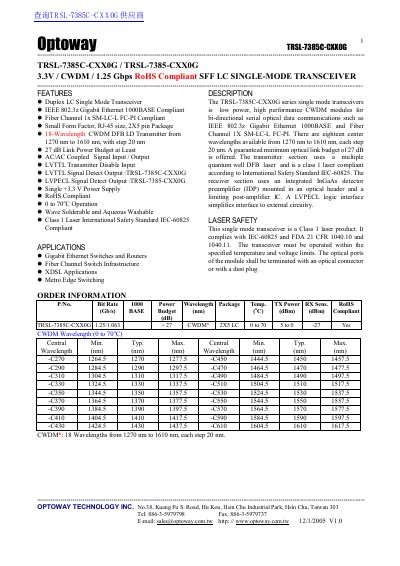

TRSL-7385C-CXX0G / TRSL-7385-CXX0G 3.3V / CWDM / 1.25 Gbps RoHS Compliant SFF LC SINGLE-MODE TRANSCEIVER is a product of Optoway. It supports IEEE 802.3z Gigabit Ethernet 1000BASE and Fiber Channel 1x SM-LC-L FC-PI protocols, uses AC/AC Coupled Signal Input / Output, supports LVTTL Transmitter Disable Input and LVTTL Signal Detect Output / LVPECL Signal Detect Output, single power supply +3.3 V, supports 0 to 70oC Operation, meets Class 1 Laser International Safety Standard IEC-60825 standard.
The TRSL-7385C-CXX0G series is a low-power, high-performance CWDM module designed for bi-directional serial optical data communications. It complies with IEEE 802.3z Gigabit Ethernet (1000BASE) and Fiber Channel 1x SM-LC-L FC-PI standards. The module features a Small Form Factor (SFF) package with a 2x5 pin layout and supports CWDM wavelengths ranging from 1270 nm to 1610 nm in 20 nm steps.
| Bit Rate | 1.25 Gbps |
|---|---|
| Wavelength Range | 1270 nm to 1610 nm |
| Link Power Budget | 27 dB |
| Operating Temperature | 0 to 70°C |
| Power Supply Voltage | 3.3 V |
| Package Type | 2X5 pin |
| Compliance | IEEE 802.3z Gigabit Ethernet |
It is used for Gigabit Ethernet Switches and Routers, as well as Fiber Channel Switch Infrastructure.
Yes, the module is RoHS Compliant.
A guaranteed minimum optical link budget of 27 dB is offered.
