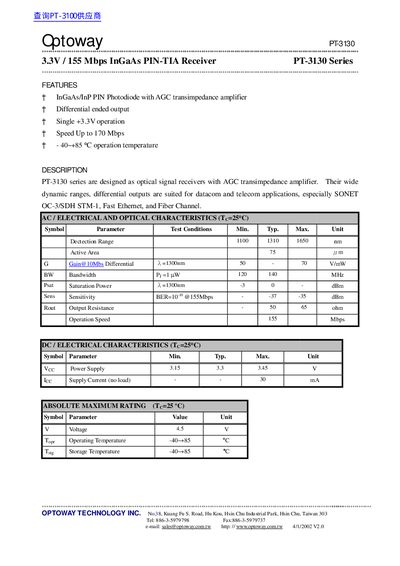

The PT-3130 series optical signal receivers are designed with InGaAs/InP PIN photodiode and AGC transimpedance amplifier. Their wide dynamic ranges, differential outputs are suited for datacom and telecom applications, especially SONET OC-3/SDH STM-1, Fast Ethernet, and Fiber Channel.
The Optoway PT-3130 series are optical signal receivers designed as InGaAs/InP PIN photodiodes with automatic gain control (AGC) transimpedance amplifiers. These devices feature differential ended outputs and operate on a single +3.3V supply, supporting speeds up to 170 Mbps.
| Detection Range | 1100, 1310, 1650 nm |
|---|---|
| Active Area | 75 µm² |
| Bandwidth (Py=1 µW) | 120, 140 MHz |
| Sensitivity (BER=10⁻⁹ @155Mbps) | -37 to -35 dBm |
| Output Resistance | 50, 65 ohm |
| Operation Speed | 155 Mbps |
| Supply Current (no load) | 30 mA |
| Operating Temperature | -40~+85 °C |
The device operates on a single +3.3V supply.
The active area of the device is 75 µm².
