This transceiver is a single-mode fiber, supports 2.125 Gbps data transmission rate, uses 3.3 V power supply, supports 18 wavelength CWDM transmission.

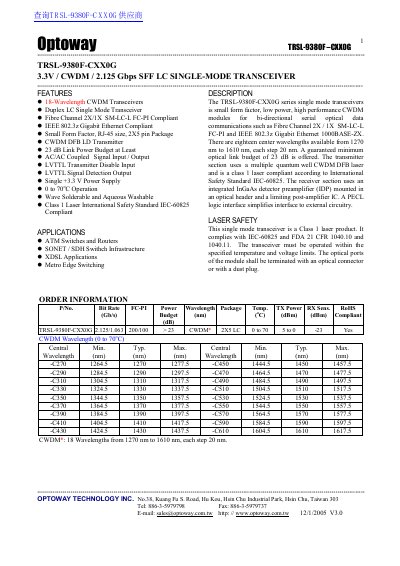

The Optoway TRSL-9380F-CXX0G is a small form factor, low power, high performance CWDM single-mode transceiver. It is designed for applications such as ATM switches, routers, and metro edge switching, complying with Fibre Channel 2X/1X and IEEE 802.3z Gigabit Ethernet standards. The module operates with a 3.3V power supply and supports CWDM wavelengths ranging from 1270 nm to 1610 nm.
| Wavelength Range | CWDM 1270 nm to 1610 nm |
|---|---|
| Operating Temperature | 0 to 70°C |
| Power Supply Voltage | 3.3V |
The module operates within a temperature range of 0 to 70°C.
A guaranteed minimum optical link budget of 23 dB is offered.
