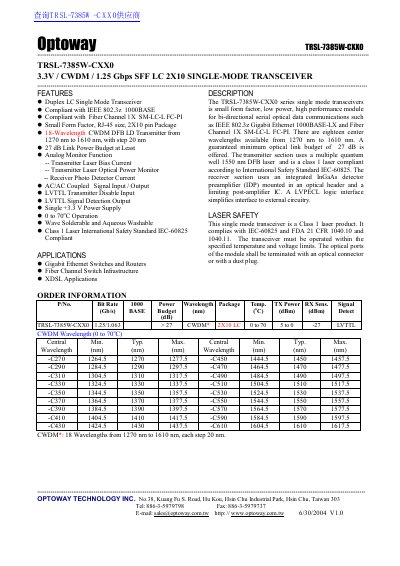

Optoway TRSL-7385W-CXX0 is a fiber optic transceiver. It has 18-Wavelength CWDM DFB LD Transmitter from 1270 nm to 1610 nm, and is compatible with IEEE 802.3z 1000BASE and Fiber Channel 1X SM-LC-L FC-PI.
The TRSL-7385W-CXX0 series is a small form factor, low power, high performance single-mode transceiver designed for bi-directional serial optical data communications. It complies with IEEE 802.3z 1000BASE-LX and Fiber Channel 1X SM-LC-L FC-PI standards, offering a guaranteed minimum optical link budget of 27 dB. The module features a CWDM DFB LD transmitter ranging from 1270 nm to 1610 nm with a 20 nm step, and includes analog monitor functions for transmitter laser bias current, transmitter laser optical power, and receiver photo detector current.
| Bit Rate | 1.25 Gbps |
|---|---|
| Wavelength Range | 1270 nm to 1610 nm |
| Link Power Budget | 27 dB |
| Operating Temperature | 0 to 70°C |
| Power Supply Voltage | 3.3 V |
| Interface | LVTTL |
| Package Type | SFF LC 2X10 |
| Side Mode Suppression Ratio | 30 dB |
| Sensitivity | -27 dBm |
The module supports eighteen center wavelengths from 1270 nm to 1610 nm with a step of 20 nm.
Yes, it is compliant with IEEE 802.3z 1000BASE-LX.
A guaranteed minimum optical link budget of 27 dB is offered.
Yes, it includes analog monitor functions for transmitter laser bias current, transmitter laser optical power, and receiver photo detector current.
