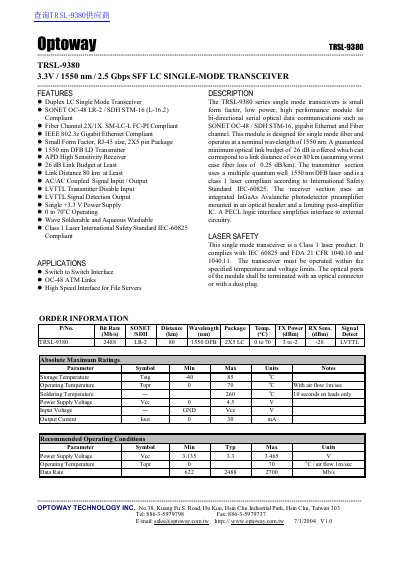

TRSL-9380 3.3V / 1550 nm / 2.5 Gbps SFF LC SINGLE-MODE TRANSCEIVER is a product of Optoway Technology Inc.
The Optoway TRSL-9380 is a small form factor, low power, high performance single-mode transceiver module designed for bi-directional serial optical data communications. It complies with SONET OC-48 / SDH STM-16 (L-16.2), Fiber Channel 2X/1X SM-LC-L, and IEEE 802.3z Gigabit Ethernet standards. The module operates at a nominal wavelength of 1550 nm and features a guaranteed minimum optical link budget of 26 dB, supporting link distances of over 80 km.
| Wavelength | 1550 nm |
|---|---|
| Data Rate | 2.5 Gbps |
| Interface | SONET OC-48 / SDH STM-16 / Gigabit Ethernet |
| Link Distance | 80 km |
| Link Budget | 26 dB |
| Operating Temperature | 0 to 70°C |
| Power Supply | +3.3 V |
| Package | 2X5 pin LC |
The module operates at a nominal wavelength of 1550 nm.
The module supports a link distance of at least 80 km.
Yes, it is IEEE 802.3z Gigabit Ethernet Compliant.
