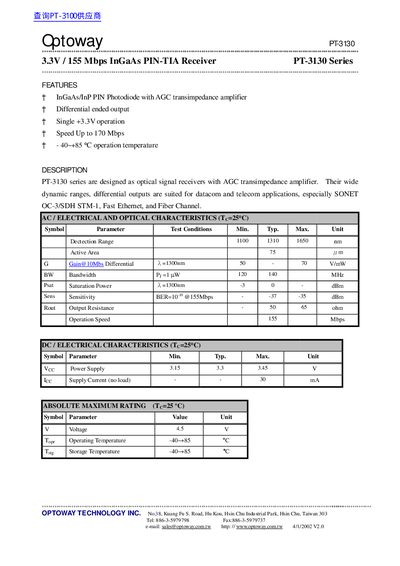

Optoway PT-3130 is a 3.3V / 155 Mbps InGaAs PIN-TIA receiver with features such as InGaAs/InP PIN photodiode and AGC transimpedance amplifier. It is suitable for datacom and telecom applications, especially for SONET OC-3/SDH STM-1, Fast Ethernet, and Fiber Channel.
The Optoway PT-3130 series are optical signal receivers designed with an AGC transimpedance amplifier. They feature a wide dynamic range and differential outputs, making them suitable for datacom and telecom applications such as SONET OC-3/SDH STM-1, Fast Ethernet, and Fiber Channel. The device operates on a single +3.3V supply.
| Active Area | 75 um |
|---|---|
| Bandwidth | 120 140 MHz |
| Sensitivity | - 37 -35 dBm |
| Output Resistance | 50 65 ohm |
| Operation Speed | 155 Mbps |
| Supply Voltage | 3.15 3.3 3.45 V |
| Supply Current (no load) | 30 mA |
| Operating Temperature | -40~+85 °C |
The operation speed is 155 Mbps.
The device operates on a single +3.3V supply.
