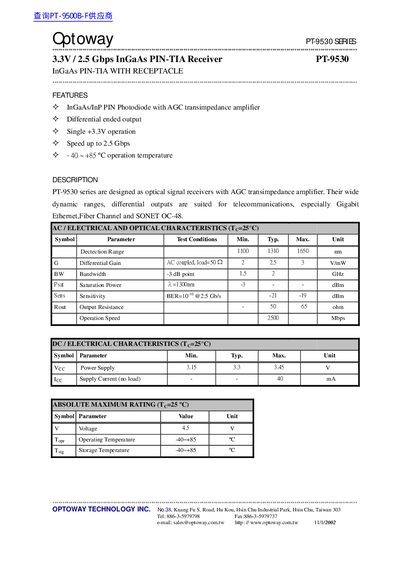

Optoway PT-9530 Series InGaAs PIN-TIA Receiver Datasheet

This file is the product manual of Optoway PT-9530 series, including product features, technical parameters and other information.

Brand: Optoway
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 109 KB
Published: 15 June, 2012
Updated: 30 September, 2023
MD5 checksum: 3478EE09ED2578224327666CE167DCB9
PDF: Optoway PT-9530 Series InGaAs PIN-TIA Receiver Datasheet PDF

About this manual

The Optoway PT-9530 series are optical signal receivers designed with an AGC transimpedance amplifier. They feature differential outputs and are suited for telecommunications applications such as Gigabit Ethernet, Fiber Channel, and SONET OC-48.

What's inside

Features
Description
Electrical and Optical Characteristics
Electrical Characteristics
Absolute Maximum Rating
Mechanical Dimension
Pin Assignment
Order Information

Specifications

Bandwidth	2 GHz
Operation Speed	2500 Mbps
Power Supply	3.3V
Operating Temperature	-40 ~ +85 °C

Frequently asked questions

What is the maximum operation speed of the PT-9530?

The operation speed is up to 2500 Mbps.

What is the sensitivity of the receiver at 2.5 Gb/s?

The sensitivity is between -21 and -19 dBm at a BER of 10^-9.
