Optoway FL-3500 is a 1310 nm MQW-FP uncooled laser diode module with features of high reliability, long operation life, and high temperature operation. It is suitable for trunk line and FitL applications.
The FL-3500 series laser diode modules are designed for coupling single‑mode optical fiber at 1310 nm in telecom and datacom applications. They are uncooled MQW‑FP devices offering high reliability, long operation life, and built‑in InGaAs monitor.

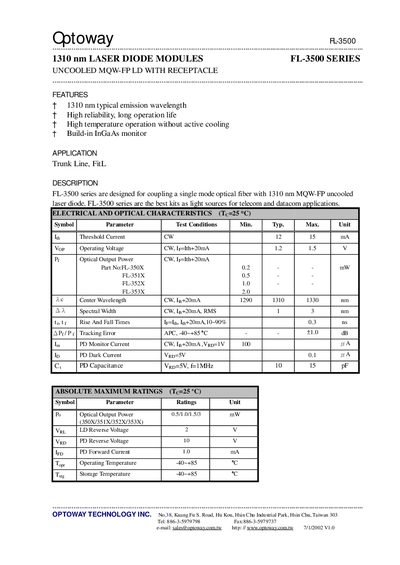

The datasheet provides electrical and optical characteristics such as threshold current, operating voltage, output power, wavelength, spectral width, and rise/fall times, as well as absolute maximum ratings, mechanical dimensions, pin assignments, and ordering information for the FL‑350X, FL‑351X, FL‑352X, and FL‑353X variants.
| LD Reverse Voltage | 2 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
The modules operate from –40 °C to +85 °C.
No, the modules are designed as uncooled laser diodes.
