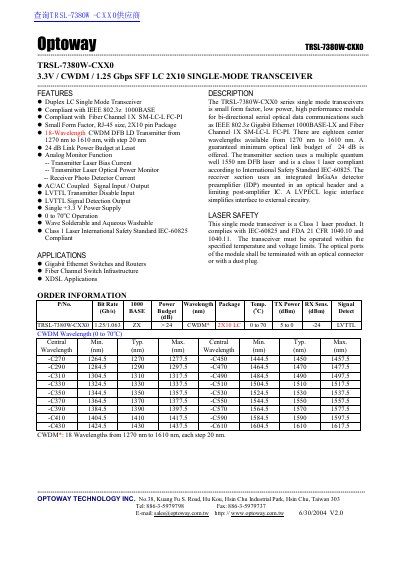

Optoway TRSL-7380W-CXX0 is a 3.3V / CWDM / 1.25 Gbps SFF LC 2X10 single-mode transceiver. It features an 18-wavelength CWDM DFB LD transmitter, a power budget of at least 24 dB, and analog monitor function, AC/AC coupled signal input/output, and more.
The document describes the Optoway TRSL-7380W-CXXO series, a small form factor (SFF) low power high performance module for bi-directional serial optical data communications. It supports IEEE 802.3z Gigabit Ethernet and Fiber Channel applications with CWDM wavelengths ranging from 1270 nm to 1610 nm.
| Bit Rate | 1.25 Gbps |
|---|---|
| Wavelength Range | 1270 nm to 1610 nm |
| Link Power Budget | 24 dB |
| Operating Temperature | 0 to 70°C |
| Power Supply Voltage | +3.3 V |
| Interface Type | LVTTL |
The guaranteed minimum optical link budget is 24 dB.
Yes, it complies with IEEE 802.3z 1000BASE-LX.
It is Class 1 compliant according to IEC-60825.
