TRSL-8380W-CXX0G is a 3.3V/CWDM/4.25Gbps digital diagnostic SFF LC single mode transceiver from Optoway.

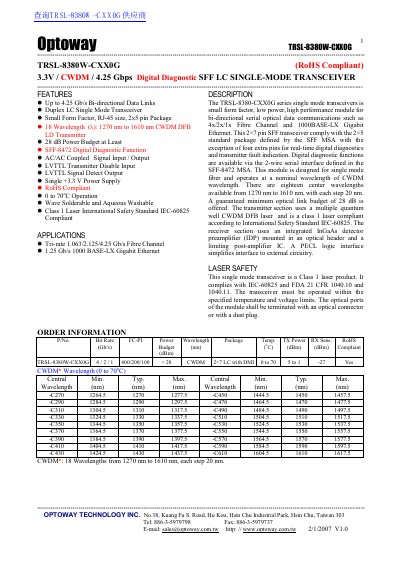

This document provides technical specifications and application details for the Optoway TRSL-8380W-CXX0G, a small form factor (SFF) digital diagnostic transceiver. It supports CWDM wavelengths from 1270 nm to 1610 nm with data rates up to 4.25 Gbps and features a 2x5 pin package.
| Data Rate | Up to 4.25 Gb/s |
|---|---|
| Wavelength Range | 1270 nm to 1610 nm CWDM |
| Power Budget | 28 dB minimum |
| Operating Temperature | -40 to 70°C |
| Supply Voltage | +3.3 V |
| Package Type | SFF LC Single-Mode Transceiver |
The module operates from -40°C to 70°C.
Yes, the TRSL-8380W-CXX0G is RoHS Compliant.
There are eighteen center wavelengths from 1270 nm to 1610 nm, with each step being 20 nm.
